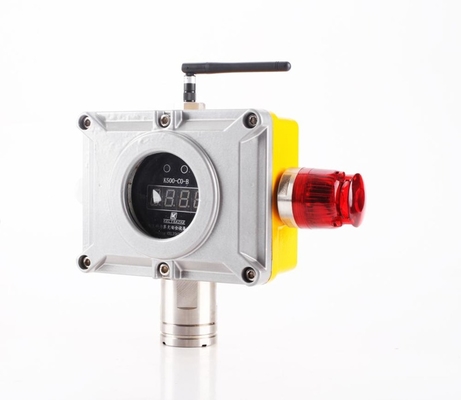

Wall mounted gas leak detector chlorine gas detector
>>>Key Features
1) Adopting world-class electrochemistry sensor
2) The explosionroof gas detector for measuring oxygen, flammable and toxic gases
3) 2discrete alarm levels (high level and low level)
4) Fastest instrument response time on the market
5) Diffused sample, 4bit digital LCD readout displays monitored data
6) Rugged steel housing for harsh environments.
7) Providing an analog (4 to 20mA) output of three-line system
8) Dimension:160x126x78mm
9) Simple operation cuts training cost
>>>Technical specification
Item: | K500 Wall-mounted gas detector |
Sensor | High sensitivity imported sensors |
Lifetime of detector: | 2 years |
Sample mode | Diffusion |
Output signals: | 4-20mA |
Operating voltage: | 220V AC/24V DC |
Display | 4 digital LED display |
Transmission cable | Three core shield cable, 3×1.0mm |
Ambient temperature: | - 20 ° C ~ + 55 ° C |
Relative humidity: | 15~90%RH (non condensation) |
Enclosure: | Aluminum alloy and stainless steel |
Detection precision: | ±5%FS |
Net Weight: | 3kg |
Explosion-proof grade: | Exd II CT6 |
Package: | carton |
Pcs/ctn: | 1pc/ctn |
Ctn size: | 260x230x140mm |
Payment terms: | T/T |
Warranty: | 1 year |
ONE PIECE/CARTON
Door-to-door service, international air transportation provided by DHL, EMS, TNT, DHL, Fedex, UPS, etc.
>>>Our advantages
* Professional experience and ability to accept and fulfill ODM/OEM order.
* Your enquiries, questions and emails can be process in 24 hours.
* Direct control on material, testing, quality, lead time ect.
* Flexible Payment terms ranged at different quantity.
* One year warranty life for all detectors.
>>>OEM
CUSTOMIZE PRODUCTS ARE AVAILABLE AND WELCOME!
>>>TEST PRINCIPLE
1. Catalytic sensors for Explosive combustible/flammable gases
Methane(CH4), LEL, Butane(C4H10), Acetylene(C2H2), Propane(C3H8), etc.
2. Electrochemical sensors for toxic gases and Oxygen
Carbon monoxide(CO), Hydrogen sulfide(H2S), Hydrogen(H2), Chlorine(CL2), Nitric Oxide(NO), Nitrogen Dioxide(NO2), Sulfur Dioxide(SO2), Ammonia(NH3), Ethylene(C2H4), ETO/Ethylene Oxide(C2H4O), Hydrogen Chlorine(HCL), Hydrogen Cyanide(HCN), Hydrogen Fluoride(HF), Phosphine(PH3), etc.
3. Infrared sensors for Methane biogas and Carbon Dioxide(CO2)
1) For all our customers, our products have 1 year warranty, and life-long maintenance.
2) All inquiries will be replied in 24 hours.
3) We will provide technical support, our engineers will help to solve the problems you met.
4) We can provide OEM and ODM service.
5) Our factory is locating in Nanjing city, welcome to visit our factory.
6) All products will be well checked and well packed before shipment, and qualification certificatewill be provided.
Why choose KELISAIKE?
1. Mutual benefit : We are a factory, our price will be cheaper in the same quality.
2. Professional engineers: We have 3 engineers who have more than 10 years’ experience and over 5 engineer assistants in gas detection line, with Hi-Tech equipments, we make more accurate and stable products.
3. Customize : We have strong R&D team, can custom product as your request.
4. Free OEM service : (a) Silk-printing your Logo(≥50PCS). (b) Design your color (≥50PCS).
5. Mix order : We accept mix order, different model and small quantity order.
6. After service: (a) 1 Year warranty. (b) If you found any inferior-quality products from us, we will send new ones to replace for free in your next order after confirmed.
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.
Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on alibaba, please have a detailed looking and choose the interested models in our site. Or you can send email to us.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
